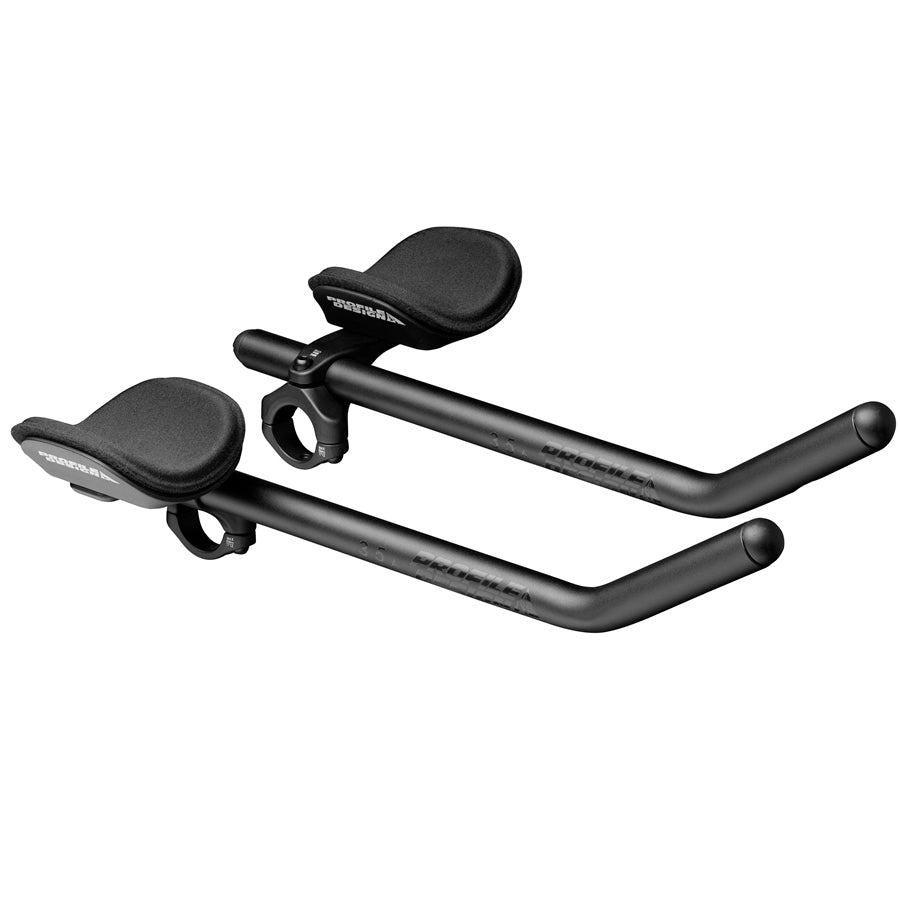

The Sonic/Ergo is designed to present minimal frontal area to create as little aerodynamic drag as possible. The main purpose of an aerobar is, of course, to get the rider into a fast position and, despite its fairly minimalist appearance, the Sonic/Ergo offers a comprehensive fit range for exactly this purpose.

View full details

What's Available @ SB's?

Size

In stock Pick Up Available - Usually Within 24hrs

View full details
View full details
View full details

Buy Interest Free - 6 or 12 months with

View full details

Shipping & Returns

NZ

Aus

International

Returns

FREE SHIPPING ON ORDERS OVER $199*

< $200  $199 +
$10

We will send your order by courier for FREE to a New Zealand address*
*does not apply to addresses outside of New Zealand or rural delivery.
Bulky items (5kg+) or if a promo code reduces the order value under $200.

DELIVERY ADDRESS

Please try to provide a postal address where you will be located during the day or the parcel can be left safely.

DELIVERY TIMES

Satchels + Small Boxes Nationwide 1-3 business days*
Rural Deliveries 3-4 business days on top of the above ETA^
*Delivery times are only a guide and actual delivery times may vary.
^Rural Deliveries items may be handed to a third party courier for delivery.

AUSTRALIA

(not available for bulky items over 3kg)
< $200 $200 - 4499 $500 - $1000
$30 $45 $65

DELIVERY ADDRESS

Please try to provide a postal address where you will be located during the day or the parcel can be left safely.

DELIVERY TIMES

Estimated delivery can vary please allow 5-15 days.

INTERNATIONAL

(not available for bulky items over 3kg)

< $400 $400 - $1000
$45 $75


DELIVERY ADDRESS

Please try to provide a postal address where you will be located during the day or the parcel can be left safely.

DELIVERY TIMES

Estimated delivery can vary please allow 5-15 days.

Within 14 days of original purchase, we will happily accept a return provided that all items are in the original saleable condition and packaging.

Scotty Browns reserves the right to determine whether a product is faulty. If deemed faulty, a replacement item will be shipped where possible subject to stock availability or a refund or a store credit via a Scotty Browns Gift Card.

Scotty Browns will not be held responsible if there is a delay in delivery. In the event that your product is lost in transit, Scotty Browns will not be held liable.

Customers will be responsible for the return shipping and handling charge. Please send a copy of your order receipt with your order. Please retain your tracking information for the parcel and allow 2 business days to process the refund on receiving the goods.

Please note that once the refund is processed by Scotty Browns, the time taken for the amount to show in your bank account is dependent on each individual bank.

Any goods that are not in the original packaging, have attached tags, undamaged, and unused will not be refunded, and returned back to you.

These conditions do not affect your rights under the Consumer Guarantees Act.



ONLINE RETURNS INSTRUCTIONS

To obtain a return or exchange online, please contact the team by emaling scotty@scottybrowns.com.

You'll then need to place the item(s) for return with a copy of the order number and return to:

Scotty Browns
16 Buchan Street
Sydenham
Christchurch 8545.

Customers will be responsible for the return shipping and handling charge.

View full details
View full details

The Sonic/Ergo is designed to present minimal frontal area to create as little aerodynamic drag as possible. The main purpose of an aerobar is, of course, to get the rider into a fast position and, despite its fairly minimalist appearance, the Sonic/Ergo offers a comprehensive fit range for exactly this purpose.

Fit Data:
Armrest Offset: -70mm to -2.5mm in 7.5mm steps
Armrest Width: 124mm to 290mm in 18.5mm steps
Armrest Stack: 60mm to 70mm** in 5mm increments

The extension length and rotation can be easily adjusted using the top bolt. There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip-on bar it is also possible to adjust the extension width and tilt easily. According to Profile Design, this is the most adjustable clip-on bar on the market (and in history).

Since the Supersonic (J5) was released as a premium bracket with market leading fit options and versatility, Profile Design wanted to bring similar options to the rest of their range of brackets and aerobars. By simplifying the extension clamp and shifting the wing forward to the bar centreline, Profile Design was able to meet these targets. As a consequence of this simplification, the Sonic is the lightest of their current brackets.

The Ergo armrest shares the flippable design of the rest of their new generation armrests. By swapping sides or rotating the armrests, smaller increments of movement are achieved – making it simple to fine tune a rider's position or match the position from their previous aerobar or bike.

Extensions

The 35a extensions offer a 35deg ski bend shape. They are 400mm long to allow a wide range of riders to fit. The cable routing is designed to exit from the rear of the extension.

  • Bracket: Sonic
  • Armrest: Ergo/10mm pads
  • Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
  • Offset: -70mm to -2.5mm in 7.5mm steps
  • Stack: The minimum is 60mm and the bracket is compatible with Profile Design's existing risers which add up to 70mm of stack in 5mm increments
  • Weight: 559 grams
